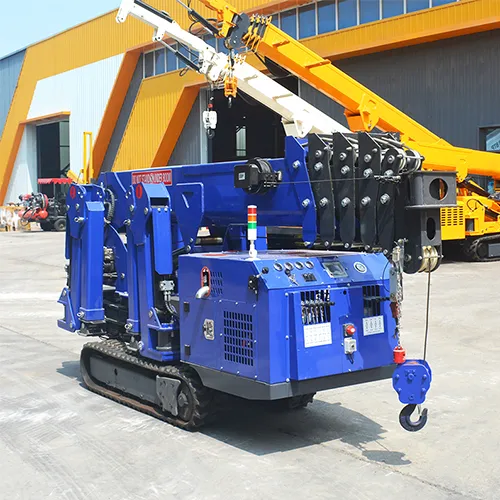

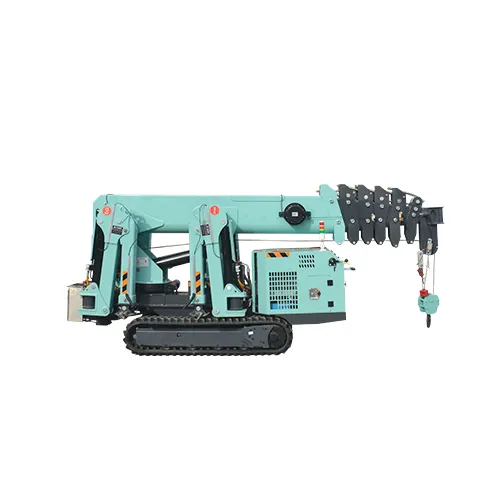

4 Ton Spider Crane
We are Jining Changsheng Machinery, a spider crane source factory located in Jining, Shandong, China. We produce this kind of compact lifting equipment for more than 10 years. Our CS-4000 model 4 Ton Spider Crane is our classic medium model, we design it for lifting work in tight and confined space. Many of our customer feedback that traditional large crane cannot enter indoor areas, courtyards and basements, so this crawler spider crane can solve this problem effectively.

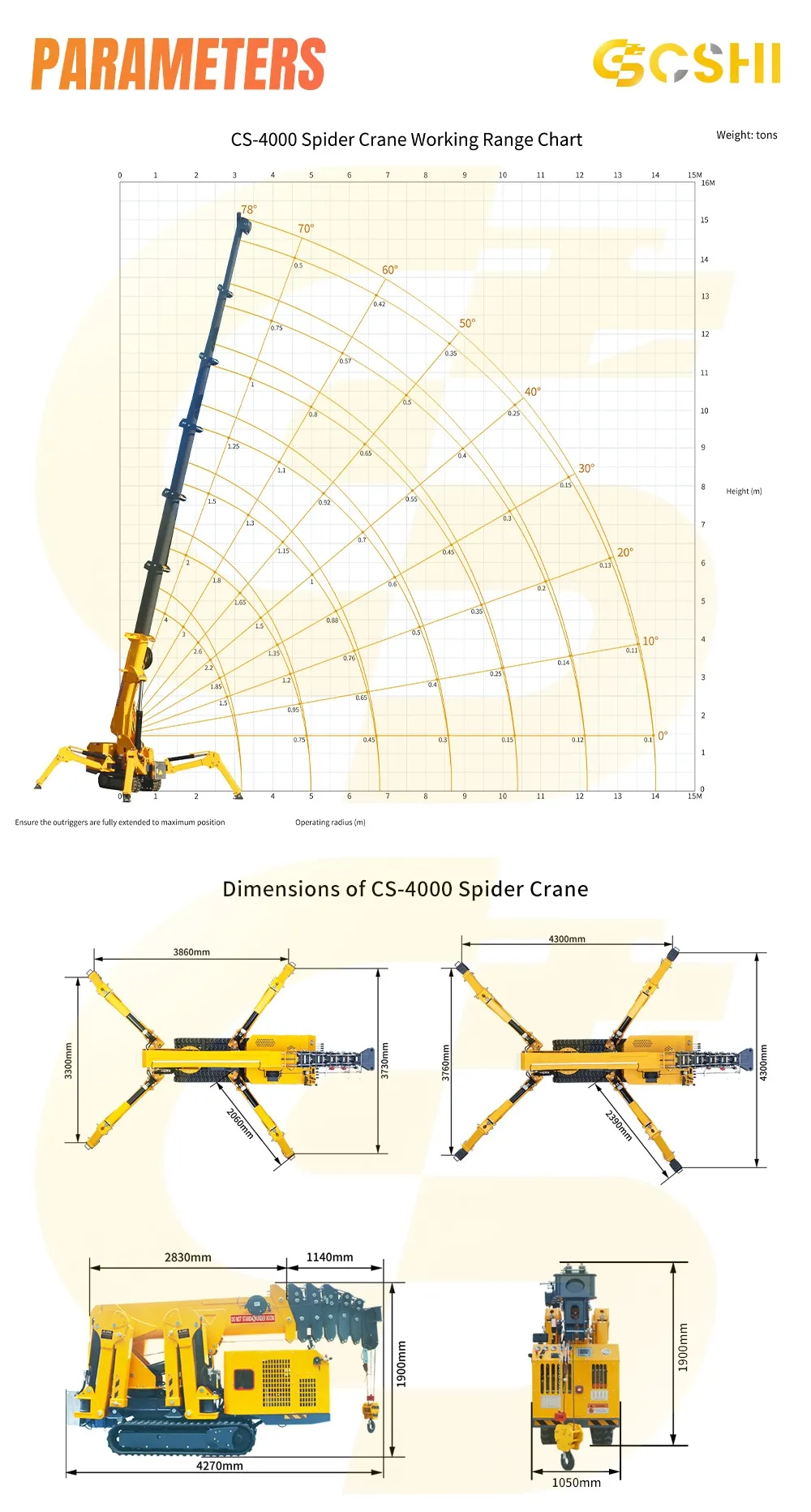

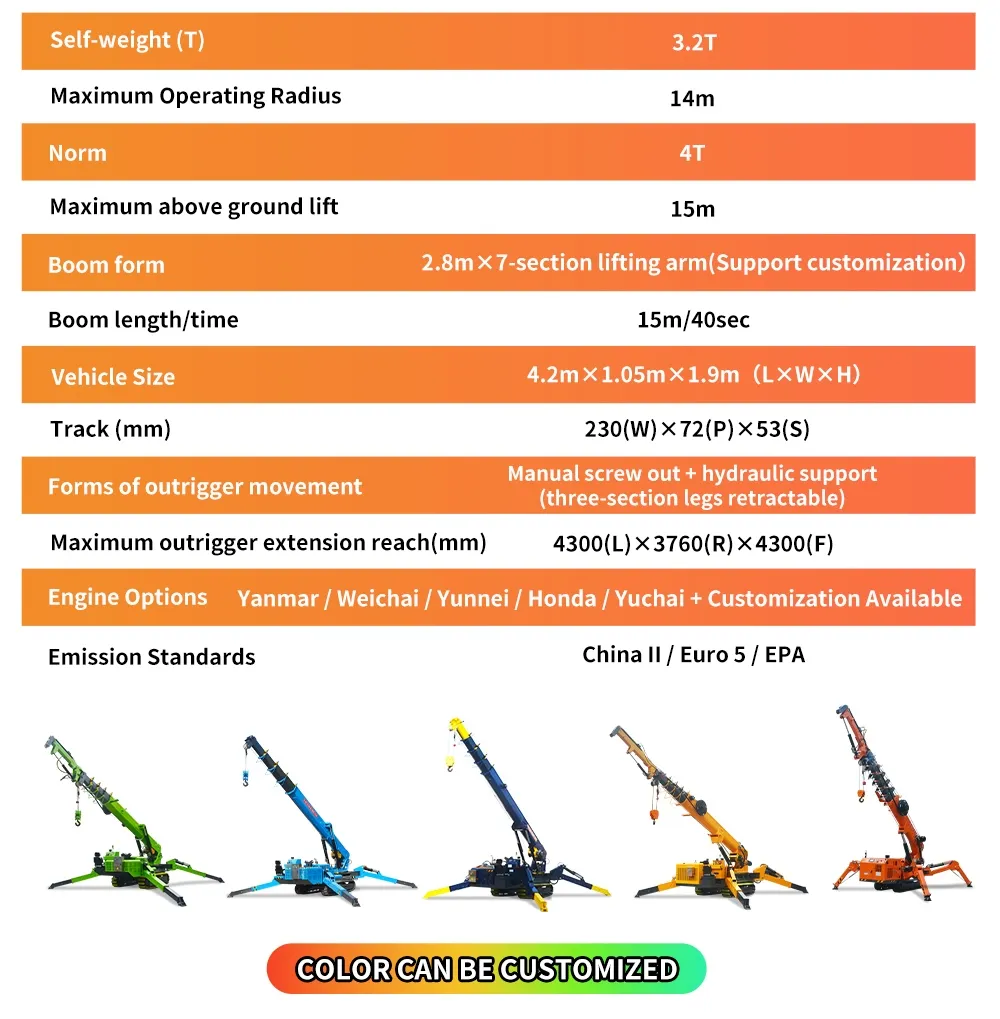

This machine have 4 ton rated lifting capacity, total self weight is 3.2 ton. We control this weight ratio to balance lifting stability and body flexibility. Its maximum operating radius reach 14 meter, maximum lifting height above ground is 15 meter. The lifting boom adopt 7-section telescopic structure, made of high strength manganese steel. Basic boom length is 2.8m, full extension length is 15m, the whole extension process cost about 40 second. Every boom unit will accept full load deflection test in our workshop before assembly, to ensure it keep safe under long time continuous working.

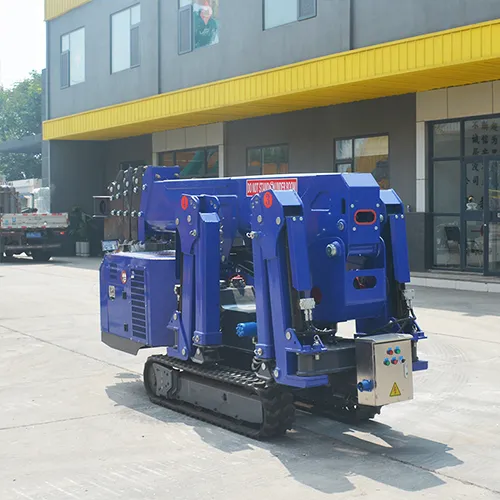

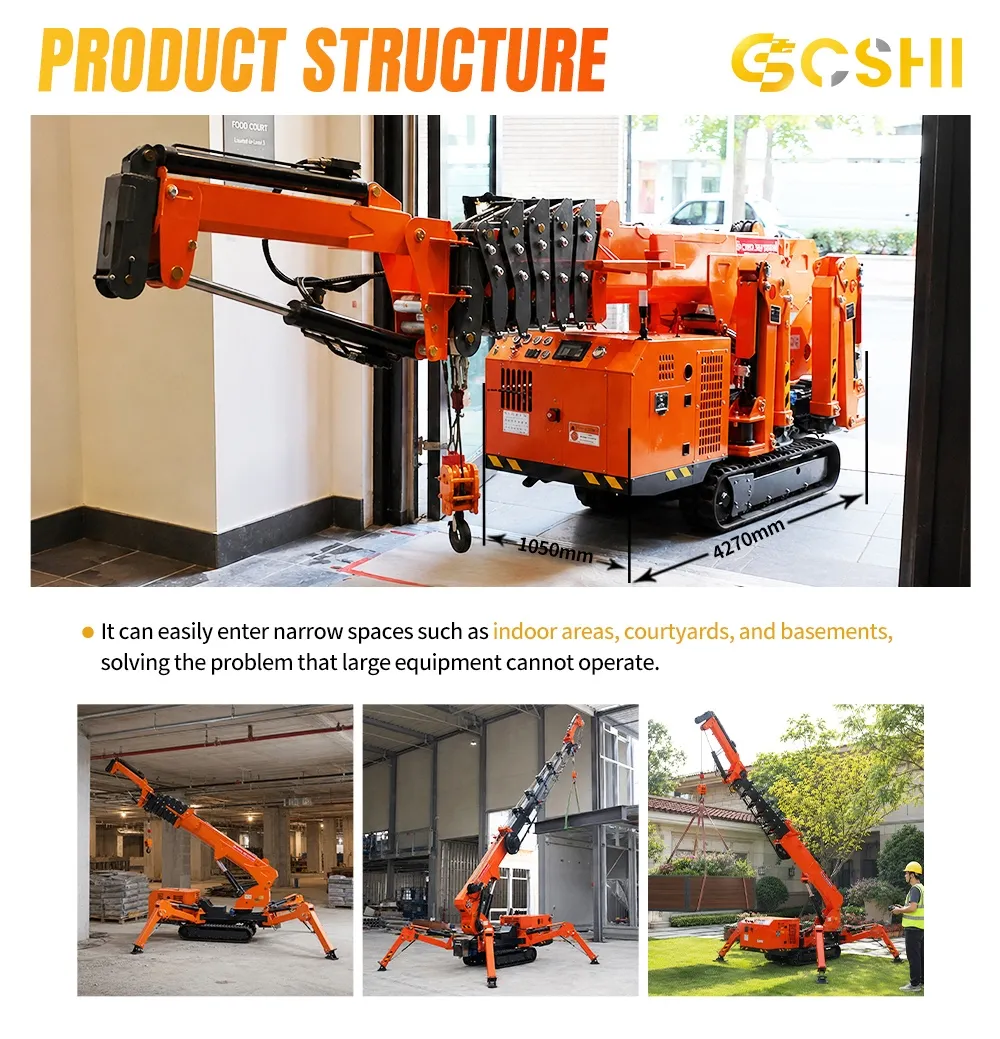

Overall dimension of the machine is 4.2m long, 1.05m wide and 1.9m high. The slim body design make it easy to pass through standard single doorway and common freight elevator. It is equipped with rubber crawler track, track width is 230mm. The travel system use hydraulic drive, walking speed range from 0 to 2.5 km/h. It can climb slope up to 25 degree, so it can adapt to muddy, gravel and other complex ground condition, work normally both indoor and outdoor.

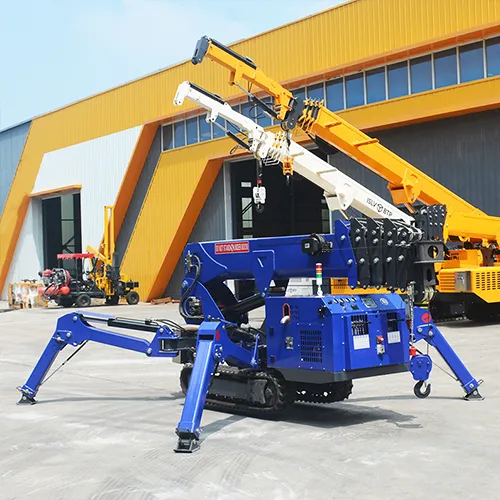

The outrigger system adopt manual screw-out form with hydraulic support, and the three-section legs are retractable. We choose manual extension structure because many client tell us automatic outrigger is easy to hit wall or surrounding facility when work in narrow indoor space. Manual mode allow operator to adjust leg length precisely according to actual site condition. When fully extended, the outrigger base measure 4300mm in length, 3760mm in rear width and 4300mm in front width. The wide support base can greatly reduce rollover risk during maximum radius lifting operation.
For power configuration, we provide multiple mature engine options for customer selection. The available engine brands include Yanmar, Weichai, Yunnei, Honda and Yuchai. Custom engine configuration is also acceptable if your local market have special requirement. The emission standards cover China II, Euro 5 and EPA, so the machine can meet import regulation of most countries in Europe, North America and other regions, reduce customs clearance trouble for buyers.
We offer rich customization service to meet different demand. You can customize engine type, print your company logo on the machine body, and choose custom machine color. Even one unit order can enjoy color customization service, to help your fleet keep uniform brand style. There are also many optional work accessories, such as wireless remote control, torque controller, man basket, hydraulic flying arm and glass vacuum suction cup, to expand application range of the equipment.
This crawler spider crane is widely used in various construction and maintenance project. Main application scenes include indoor space lifting, glass curtain wall installation, roof equipment hoisting, basement construction, substation equipment maintenance and factory facility repair. It can easily enter narrow spaces that large equipment cannot reach, improve work efficiency and reduce construction cost.

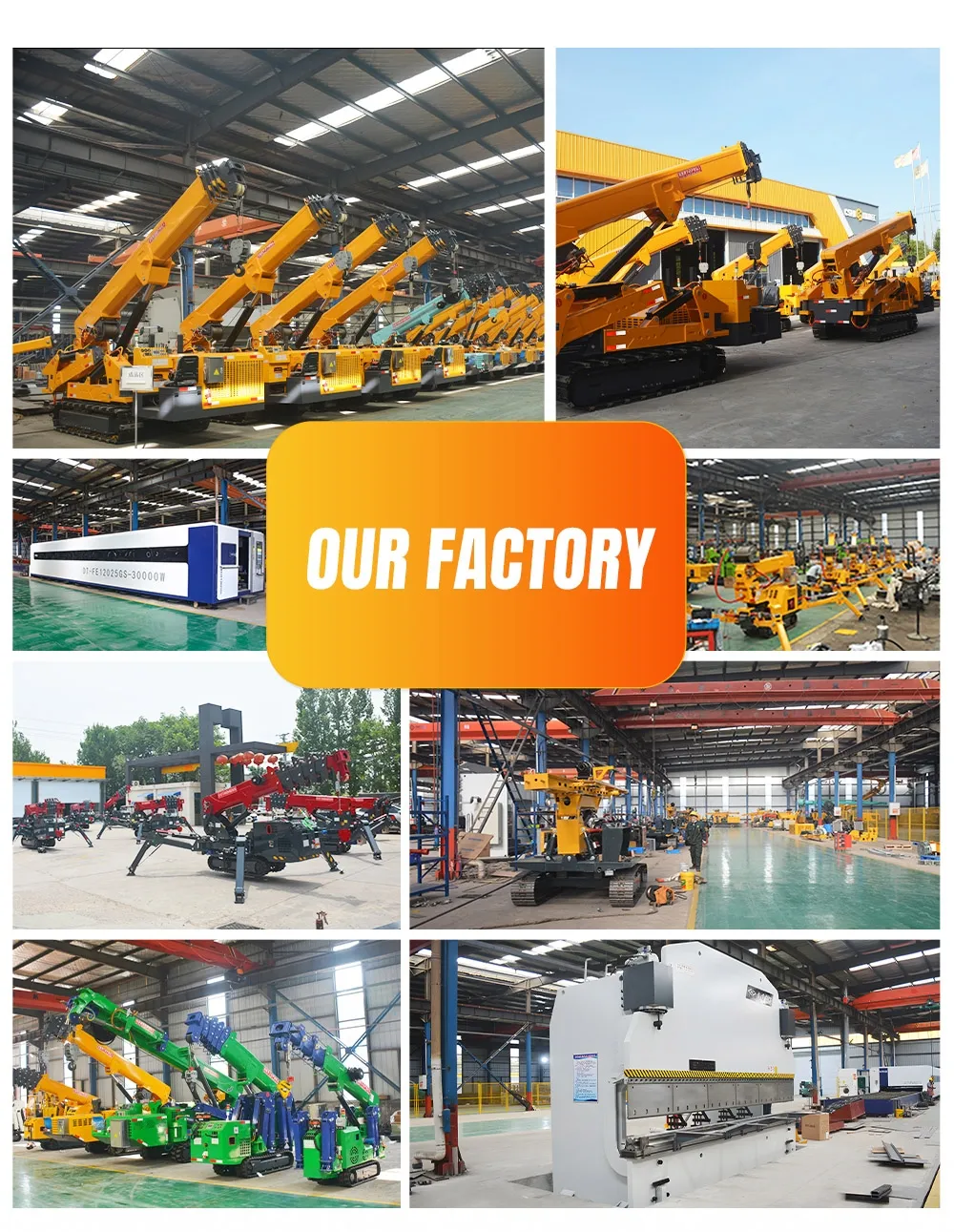

As a direct source factory, we own 62000 square meter production area, employ over 300 skilled workers, with annual output more than 1000 units of construction machinery. All our spider cranes are CE and ISO certified, meet European quality standard. Each unit will go through strict full-load test before delivery. We provide 12 months factory warranty, 24-hour English technical support for overseas buyers, and fast delivery service to Europe and North America. OEM and ODM service are both available, we can adjust product design according to your market demand.
For construction contractors and rental companies that need compact but powerful lifting equipment, the 4 Ton Spider Crane is a cost-effective and reliable choice with factory direct price. If you need complete technical datasheet, latest quotation or custom configuration plan, please send your inquiry to our sales team. We will give you professional reply within one working day.
Product Name: 4 Ton Crawler Spider Crane
Brand: Changsheng Heavy Industry
Model: CS-4000
Rated Load: 4 ton
Self Weight: 3 Tons
Max Lifting Height: 15 m
Max Working Radius: 13 m
Overall Size (Folded): L4250 × W1000 × H1830 mm
Chassis: Wear-resistant rubber track
Power Option: 380V Electric / Changchai Diesel
Operation: Manual control, wireless remote optional
Core Material: High strength manganese steel boom
Applicable Scenarios: Indoor renovation, glass curtain wall, rooftop lifting, substation maintenance, narrow municipal works
Certification: ISO, CE, High-tech Enterprise Certificate
Origin: Jining, Shandong, China
Manufacturer: Jining Changsheng Machinery Co., Ltd.
