5 Ton Spider Crane
From our factory in Jining, Shandong, we produce the CS-5000 5 ton spider crane. We make this machine because many customer tell us normal large crane cannot enter narrow space, such as indoor building, narrow alley and basement. We have make compact lifting equipment for more than 10 years, so this model is design to own heavy lifting capacity and narrow chassis at same time. The following content of CS-5000 5 Ton Spider Crane: Specifications, Applications & Factory Direct Supply will introduce core details for your project or rental fleet.

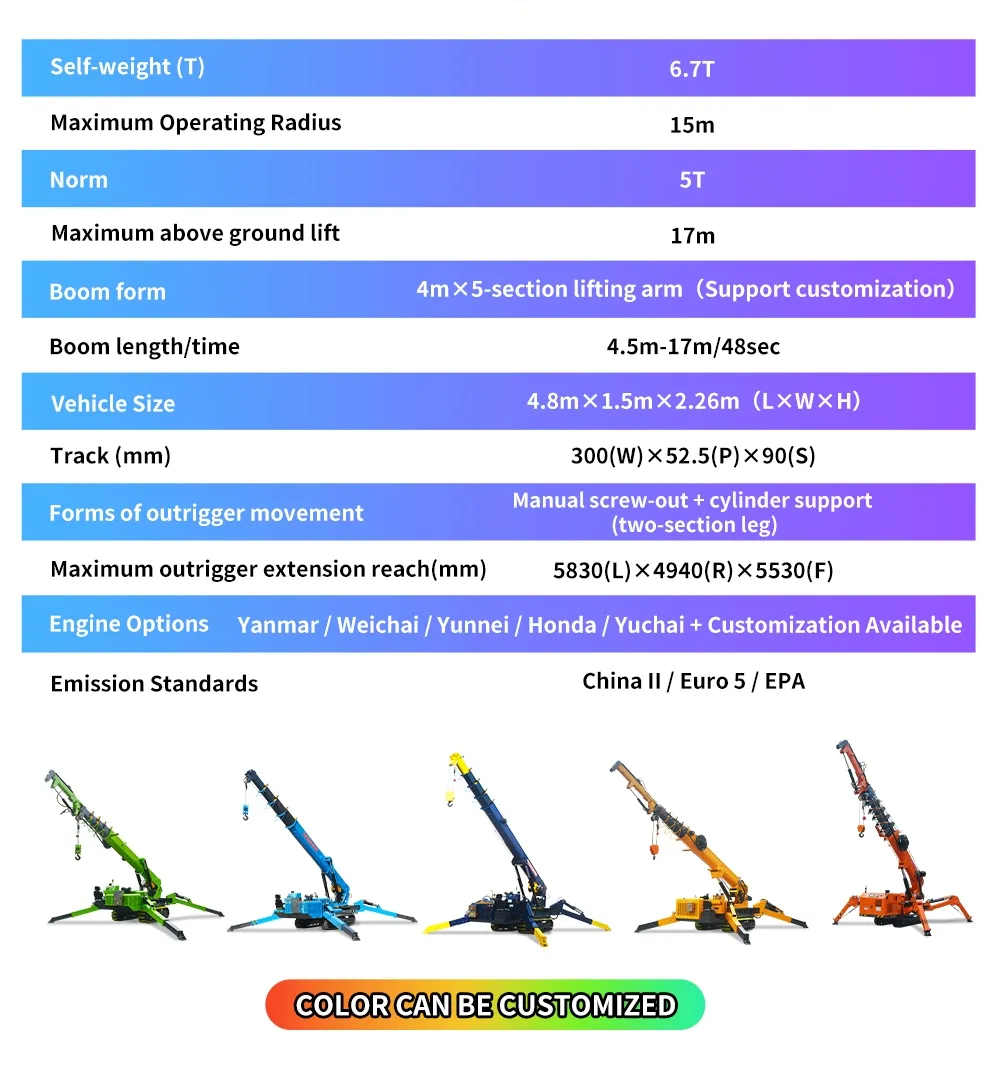

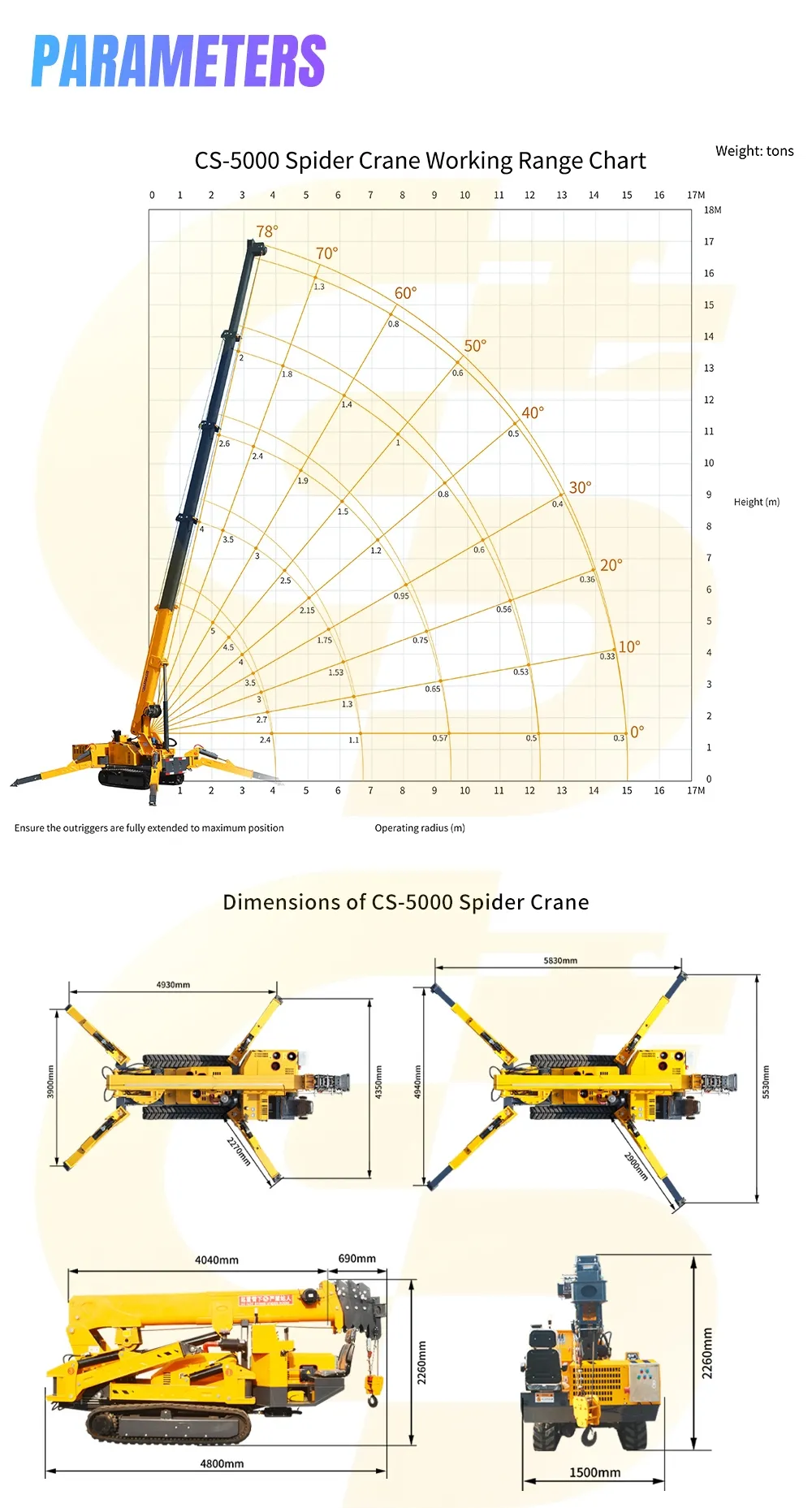

This machine has 5 ton rated lifting capacity, total self-weight is 6.7 ton. We choose this weight ratio after many times test: it is heavy enough to keep stable when boom fully extend, and light enough to be lifted to rooftop or taken into freight elevator, will not cause damage to floor structure. Its maximum working radius reach 15 meter, maximum lifting height from ground is 17 meter. It adopt 5-section telescopic boom, basic length 4.5m, full extension length 17m, whole extend process cost about 48 second. Every boom unit will accept full-load deflection test in our workshop before delivery; we use high-strength structural steel to make it, so deformation quantity is very small even under long time continuous working.

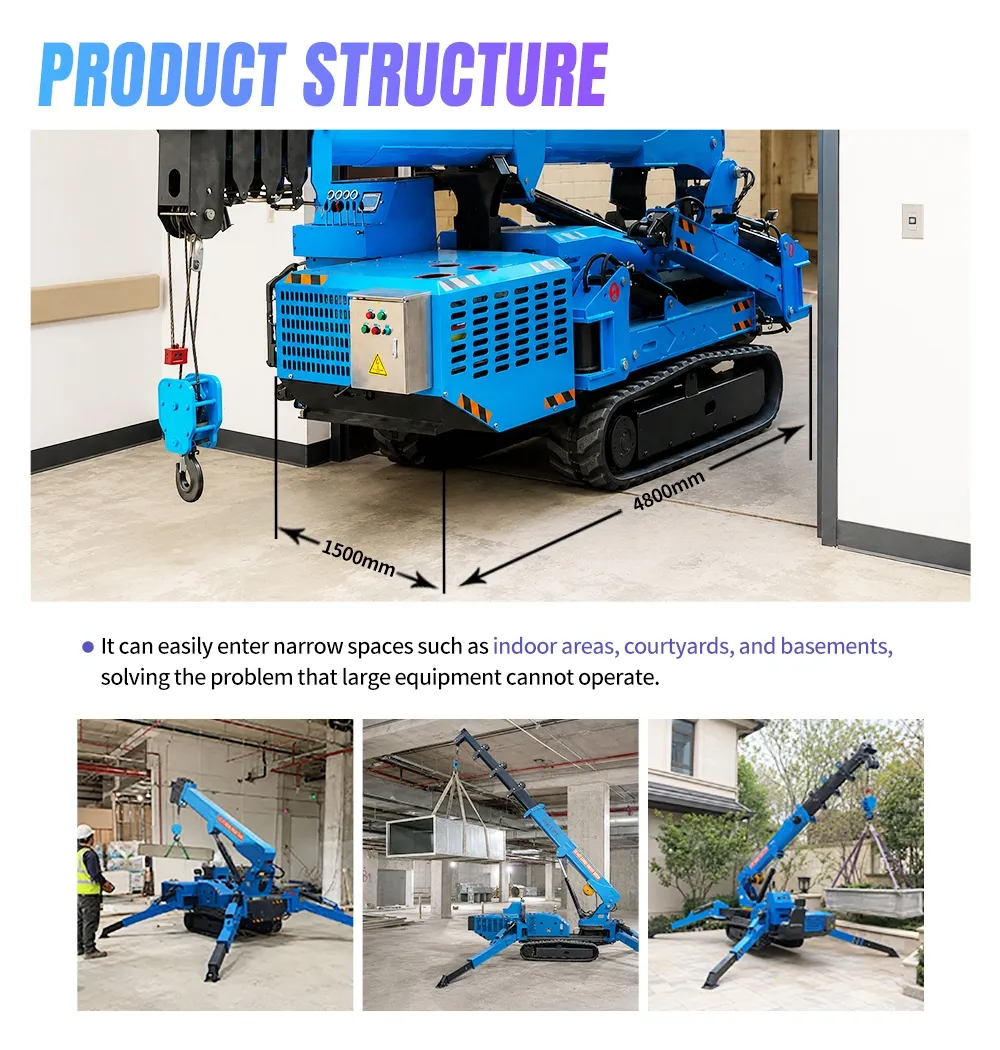

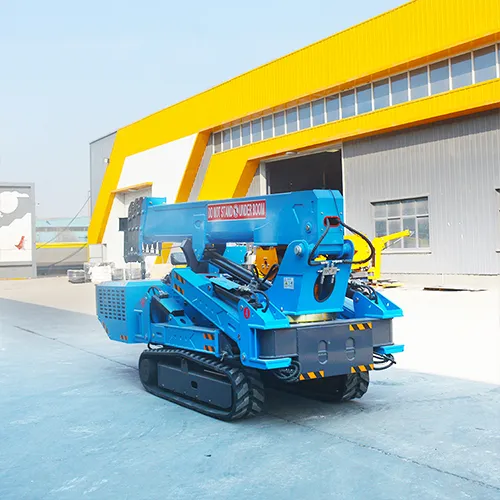

Compact body size is the most prominent advantage of this model for indoor operation. Overall dimension of the machine: length 4.8m, width 1.5m, height 2.26m. It can pass through most standard single doorway and common freight elevator, no need to dismantle door frame or rent extra transfer equipment to move it into working area. Standard configuration equip with 300mm width rubber crawler track. It can disperse body weight evenly, will not leave scratch on tile floor or polished concrete ground, so it is suit for indoor construction in shopping malls and office buildings. For outdoor working in muddy, gravel or rocky site, customer can replace with heavy-duty track, or install rubber pad later to realize dual-use function.

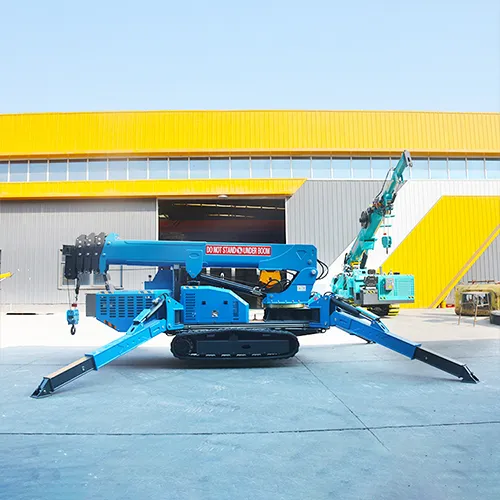

We adopt manual screw-out outrigger matched with hydraulic support on this model, not fully automatic outrigger structure. Why we design in this way? Many Europe rental customers feedback to us: automatic outrigger easy hit wall or surrounding facility when working in narrow elevator hall or basement space. Manual extension mode allow operator to adjust leg length precisely according to actual site space. After position confirmation, hydraulic cylinder will lock the outrigger firmly to ensure lifting safety. Under full extension state, outrigger base size: 5830mm in longitudinal direction, 4940mm rear width, 5530mm front width. This wide support base can effectively reduce rollover risk even under maximum working radius.

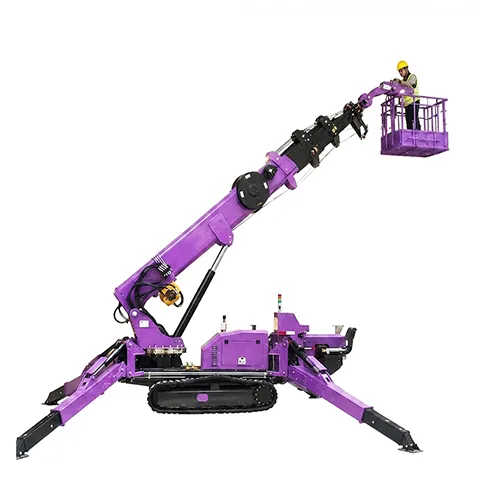

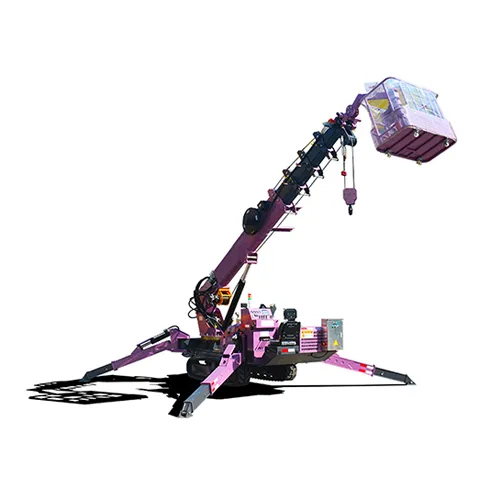

Customization service not only limit to engine. Customer can apply custom brand logo on boom and chassis, and select any RAL standard color to match fleet style or company visual requirement. We provide grey, orange, red, blue, green and black as conventional options, bulk order can support custom color code matching. You also can install additional working attachments, such as digital torque limiter, 50-meter wireless remote control, man basket and glass vacuum suction cup, to expand application range of the equipment.

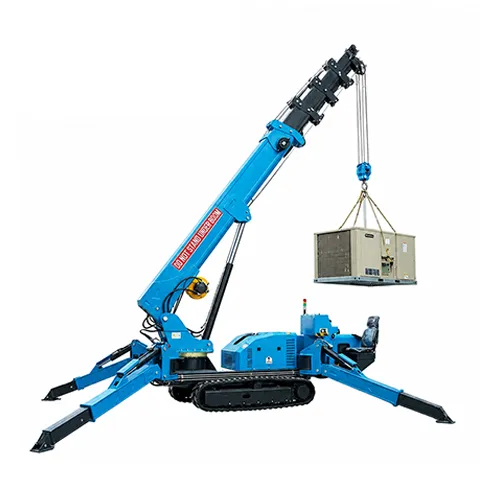

This 5 ton spider crane can be applied in various construction scenes. Common usage include indoor glass curtain wall installation, atrium equipment hoisting, basement MEP pipeline laying, rooftop HVAC and solar panel placement, substation equipment maintenance, and historic building restoration work. One of our Canadian client who engage in window installation business purchased 3 units of this model, they mainly use it for high-rise glass replacement project. They feedback that the machine can enter building service elevator directly, and on-site setup time is nearly half compared with large crane equipment.
Produced by Jining Changsheng Machinery, a professional spider crane manufacturer located in Jining, Shandong, this model enjoys complete factory quality assurance and direct factory price. Our production plant covers 62,000 square meters, employs over 300 skilled workers, and runs 8 dedicated spider crane assembly lines. We manufacture more than 1000 units of lifting and construction equipment per year, and for this 5T model, we ship over 80 units to global customers every quarter. Our full spider crane product line hold CE and ISO certificates, and every single unit will pass full-load stress test before leaving factory.
Brand: Changsheng Heavy Industry
Model: CS-5000
Rated Load: 5 ton
Self Weight: 6.7 Tons
Max Lifting Height: 17 m
Max Working Radius: 15 m
Overall Size (Folded): L4700 × W1500 × H2250 mm
Chassis: Wear-resistant rubber track
Power Option: 380V Electric + Yuchai Diesel Dual Power
Operation: Manual control, wireless remote optional
Core Material: High strength manganese steel boom
Applicable Scenarios: Indoor renovation, glass curtain wall, rooftop steel structure lifting, substation maintenance, narrow municipal works, basement equipment hoisting, high-rise interior installation
Certification: ISO, CE, High-tech Enterprise Certificate
Origin: Jining, Shandong, China
Manufacturer: Jining Changsheng Machinery Co., Ltd.
